Eaton 3-Phase Uninterruptible Power Supplies

Page Overview: Shortcut links


1.- Eaton 9E UPS's: 3-Phase True On Line Double Conversion units (20kVA, 30kVA, 40kVA and 60kVA)

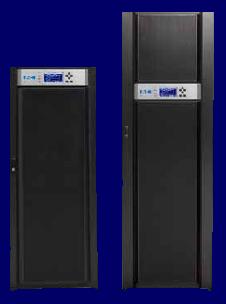

Eaton 9E UPS's

Eaton 9E: 3-Phase UPS's (20kVA, 30kVA, 40kVA, 60kVA)


The Eaton 9E UPS delivers superior power protection with lower total cost of ownership (TCO) through three key features energy-efficiency, internal batteries and compact footprint.
  • Available in 20 kVA, 30 kVA, 40 kVA and 60kVA models
  • Double-conversion, online design, 120/208Y input - 120/208Y output
  • Delivers up to 98% efficiency,
  • internal batteries: 21 minutes of battery time (20kVA), 12 minutes at 30kVA, 10 minutes at 40kVA, 5 minutes at 60kVA
  • extended battery cabinets available (EBC's)
  • compact footprint: (21" W x 31.5" D) for 20 & 30kVA units, (24" W x 31.5" D) for 40 & 60kVA units
  • Accessory cabinets:
    • 42-pole distribution panelboard, w/ subfeed breaker options
    • maintenance bypass
    • tie-cabinet for redundant (1+1) or capacity (2+0) w/ maintenance bypass
    • transformers: for 480in/208out or 480in/480out applications


[Back to Top]



2.- Eaton PW9355 UPS's: 3-Phase True On Line Double Conversion units (10 to 30kVA)


Powerware 9355

Eaton PW9355: 3-Phase UPS's (10kVA, 15kVA, 20kVA, 30kVA)


Delivering maximum power density in a compact tower design, the Eaton PW9355 Uninterruptible Power System (UPS) provides more real wattage in less space, protecting additional equipment at a reduced cost while also leaving room for expansion.
  • Available in 10 kVA, 15 kVA, 20 kVA and 30kVA models, the PW9355 can be scaled up using Powerware's Hot Sync paralleling technology, allowing up to four models to be paralleled for either capacity or redundancy. Thus, a 15 kVA UPS can grow to support a load of up to 45 kVA, and a 30kVA can grow to support a capacity of 90kVA.
  • Double-conversion, online design, 120/208Y input - 120/208Y output
  • Delivers maximum power density in a compact tower design of only 12 inches wide and 33 inches deep including batteries (10kVA and 15kVA); 20 inches wide and 34 inches deep (20kVA and 30kVA)
  • Provides more real wattage in less space with 0.9 output power factor, protecting more equipment and leaving more room for expansion (for ex.: 15kVA/13.5kW)
  • .99 input power factor and generator-friendly (<5% total harmonic distortion)
  • Significantly increases battery life through microprocessor-control ABM® technology
  • Matching External Battery Modules (EBMs) available to extend runtimes


[Back to Top]

3.-Eaton Rackmount BladeUPS's: 3-phase True On Line Double Conversion units (12 to 60kVA)

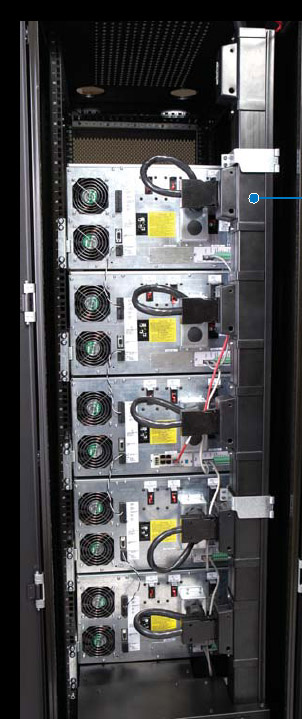

Powerware BladeUPS

Eaton BladeUPS: 3-Phase UPS's (12 to 60kW)


Designed specifically for high-density computing environments, the Eaton BladeUPS delivers 12kW of efficient, reliable power in only 6U of standard 19" rack space, including batteries.
Capacity can be expanded by combining 12kW modules in a building block fashion up to 60kW of backup power in a single rack enclosure.
  • conserves valuable rack space with 12kW of power in only 6U of rack height including batteries
  • accommodates growth up to 60kW (N+1 redundant) in a single rack enclosure - Hot Sync® paralleling technology
  • reduces energy costs and cooling needs through 97% best-in-class efficiency performance
  • simplifies installation and service with true plug-and-power connections and hot-swappable batteries
  • extended battery modules
  • typical applications: blade server support, network closets, VoIP equipment, IPTV, security, storage devices (RAID, SAN)


[Back to Top]

4.-Eaton PW9390 UPS's: 3-phase True On Line Double Conversion units (40 to 160kVA)

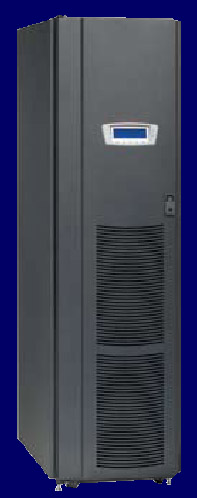

PW9390 UPS

Eaton PW9390: 3-Phase UPS's (40 to 160kVA)

  • Available in 40, 50, 60, 80, 100, 120 and 160kVA (208 or 480V)
  • Double-conversion, online design
  • Very small footprint (72kW in less than 4sqft)
  • High output power factor of .9
  • Hot Sync technology to parallel for capacity and redundancy (up to 8 modules)
  • ABM integrated battery management system
  • one-year warranty, parts and labor
  • typical applications: data centers, medical facilities,diagnostic imaging equipment, enterprise networks


[Back to Top]

5.-Eaton PW9390IT UPS's: 3-phase True On Line Double Conversion units (40 to 160kVA)w/ built-in IT distribution

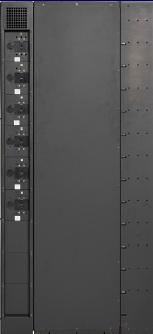

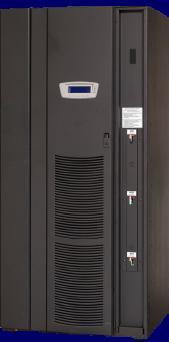

PW9390IT UPS PW9390IT UPS w/ L21-30 IT distribution

Eaton PW9390IT: 3-Phase UPS's (40 to 160kVA) w/ IT Distribution Sidecar

  • Available in 40, 80, 120 and 160kVA (208 or 480V)
  • Double-conversion, online, transformerless design
  • Plug-and-play distribution directly from the 9390IT to ePDUs in racks (rear access required for receptacles)
    • 40 kVA: (12) L6-30R or (6) L21-30R or (4) L22-30R or (4) IEC309-60
    • 80 kVA: (12) L21-30R or (6) L22-30R or (6) IEC309-60 or (4) IEC309-60
    • 120 kVA: (9) L22-30R
    • 160 kVA: (6) IEC309-60
  • Integrated 3-breaker maintenance bypass accessible from the front of the unit
  • 99% high efficiency down to 20% load level
  • Internal batteries available on 40kVA unit, external battery cabinets for all units
  • Typical applications: data centers


[Back to Top]

5.-Battery Replacement


Battery Replacement New batteries for Eaton Uninterruptible Power Supplies: Typically batteries need to be replaced after 3 to 5 years of operation


[Back to Top]




Request for Quotation - Eaton 3-Phase UPS
Your name: Your company name:
Your e-mail: Your Phone Number:

I request a quote for:

Battery backup time required at full load:

Input and output voltages:

Additional Comments:
