PDI Power Distribution Units (PDU)



1.- The PDI PowerPak PDU:

The PowerPak PDU's ensure advanced protection for non-linear loads. They integrate isolation, electronic grade grounding, distribution and power monitoring in a single, self-contained cabinet. They are available for 15-300kVA applications.
Options include remote cabinets for high density wiring and compact design, branch circuit monitoring system, harmonics mitigation, surge suppression, combination of power distribution and automatic switching.


PDI PowerPak PDU The PDI PowerPak PDU ensures advanced power protection for non-linear loads (15-300kVA)
  • 2 x 42 pole panelboards (up to 6 x 42 pole panelboards with additional "side cars")
  • K20 isolation transformer, Cu windings
  • 200% rated neutral conductor
  • accurate monitoring: kW, power factor, THD
Options include junction box, branch circuit monitoring system, harmonics mitigation with the Quad Wye harmonic cancellation module , surge suppression, redundant power distribution systems, branch circuit breakers, output cables and receptacles

[Back to Top]



2.- The PDI Remote Power Panel (RPP):

The PDI Remote Power Panel (RPP) provides the added pole "space" to meet your distribution needs without consuming your valuable floor "space"

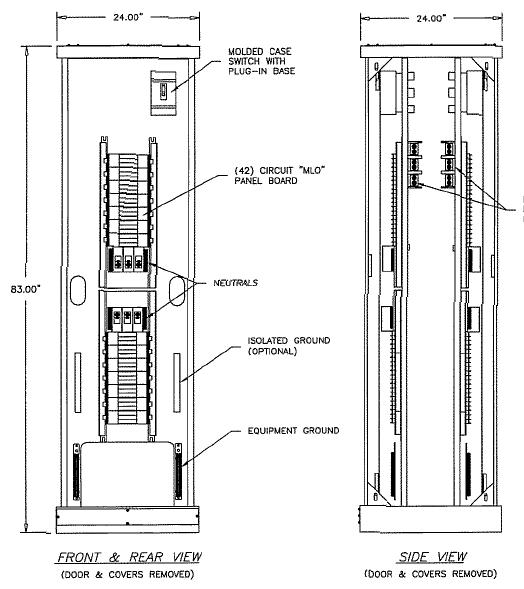

Power Distribution Unit (PDU): PDI RPP Very compact Remote Power Panel (RPP): 24" x 24" foot print, suitable for top or bottom entry
  • 120/208Y input, no transformer
  • single feed or dual input
  • 225A rated input molded case switch
  • up to four, 42 pole distribution panel boards
  • oversized neutral
  • customed monitoring available
  • optional single point isolated ground
Options include branch circuit monitoring system, surge suppression, branch circuit plug-in or bolt-on breakers, output cables and receptacles

[Back to Top]



3.- The PDI SBR + PowerPak PDU:

The PDI SBR Static Transfer Switch can be combined with the PowerPak PDU to provide a complete redundant power distribution system


PowerPak PDU + STS


[Back to Top]
