MGE Power Distribution Units (PDU)

  • PMM, Remote PMM, PMM Plus, PMM Extra

1.- The MGE Power Management Module (PMM):

The PMM units provide the protection your critical loads demand. They integrate isolation, electronic grade grounding, distribution and power monitoring in a single, self-contained cabinet. They are available for 30 to 300kVA applications

Options include branch circuit monitoring system, harmonics mitigation, surge suppression, combination of power distribution and automatic switching (see PMM Plus/PMM Ultra).

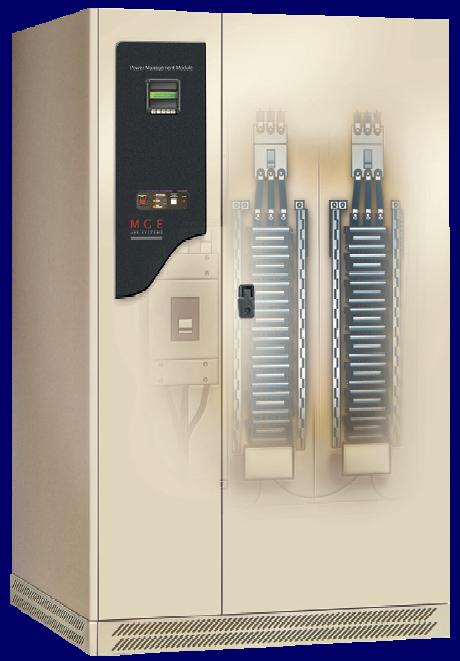

MGE PMM The MGE PMM units provide instant front access via hinged doors, dead front panels and ample raceway and landing space for cables for easy connections and changes
  • accommodate up to 252 breakers (2 x 42 pole panelboards in std 42" PMM cabinet + 4 extra panelboards using either front or side facing cabinet configurations)
  • 200% rated neutral bus
  • top or bottom entry
  • 22kAIC input CB (higher kAIC available)
  • computer grade K20 isolation transformer (Copper windings standard for 150kVA to 300kVA units)
  • options:
    • isolated ground
    • input junction box with 10' cable
    • harmonic cancellation transformer
    • high kAIC input CB
    • TVSS
    • floor stands
    • remote EPO
    • locking door
    • branch circuit breaker current monitoring
    • distribution breakers
    • cables and receptacles


2.- The MGE PMM Remote:

The MGE PMM Remote offers flexibility for added capacity of the PMM cabinet or as a stand-alone, compact power distribution unit.

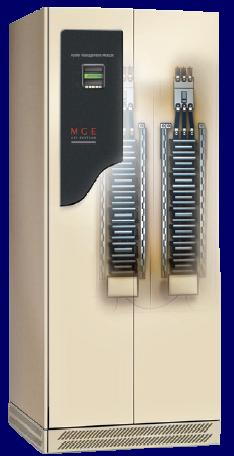

MGE PMM Remote The MGE Remote PMM contains 2x 42 pole panelboards in a very compact footprint (14" x 30")
  • 2 x 42 pole panelboards with individual main breakers
  • back-to-back or side-by-side 168 pole configurations
  • top or bottom cable entry option


3.- The MGE PMM Plus/PMM Ultra:

The MGE PMM Plus/PMM Ultra integrates the PMM module with the Epsilon Static Transfer Switch to provide dual input distribution with automatic source selection


Power Distribution Unit (PDU): MGE PMM Plus (PDU + Static Transfer Switch PMM Plus or PMM Ultra Automatically sensing power quality deficiencies, the STS (200A, 400A or 600A) seamlessly transfers to an alternate input power source in under 4 milliseconds.
  • redundant isolated power supplies: The Epsilon STS uses triple redundant power supplies, with each supply feeding one of three isolated buses on every circuit board
  • stable low load performance
  • user friendly interface
  • smart fault isolation logic
PMM Plus and PMM Ultra
  • The PMM PLus connects the output of the Epsilon STS to the input of the PMM, creating a dual input distribution system with automatic source selection
  • The PMM Ultra has a separate AC source going to dedicated isolation transformers upstream of the STS. The output of the STS directly feeds distribution panelboards.
  • MGE Epsilon STS and PMM plus/PMM Ultra Brochure
  • [Request a quote]
