Emergency Lighting UPS's (UL924)

Page Overview: Shortcut links

Myers Illuminators - UL924 approved (500VA to 50kVA)
Staco UPS's - UL924 approved (8 to 30kVA, 3-Phase)
Mitsubishi UPS's - UL924 approved, model 2033C (10, 15 and 20kVA - 208in/out)
Mitsubishi UPS's - UL924 approved, model 2033A (30 to 75kVA - 208in/208out)
Toshiba UPS's - UL924 approved, (25 and 50kVA - 480in, 480/277Yout)
Eaton UPS's - UL924 approved, (8kVA & 10kVA - 277in/out 1Ph., 10 to 30kVA (208 & 480V., 3Ph)
Battery Replacement

1.- Myers Emergency Lighting Inverters: Myers Illuminators (500VA to 50kVA)

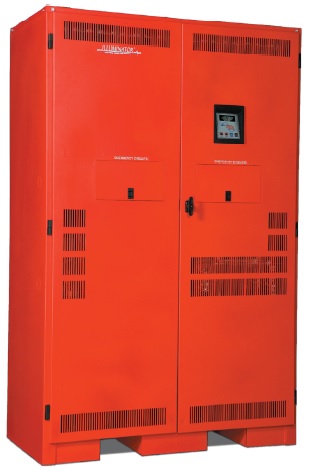

Myers Illuminator Emergency Lighting Inverters

Illuminator E & IE

Single Phase 1.5kVA to 16.7kVA (UL924: 90 minutes of battery time)
120V. input/output and 277V. input/output units

Illuminator Series IE is an interruptible lighting inverter. It transfers to inverter mode (battery power)
when utility power is interrupted for more than one line cycle. This series is capable of supporting full capacity
of normally off load. The series IE is best suited for fluorescent and incandescent lighting loads and systems that
require large lighting loads that are normally off (illuminate during emergency conditions).
Illuminator Series E is an un-interruptible lighting inverter. It transfers to inverter mode (battery power)
when utility power is interrupted for less than 1mS. The line interactive design eliminates excessive transfers
to battery power. The series E is best suited for HID lighting loads and systems that do not require large loads
that are normally off (illuminate during emergency conditions)
Illuminator E Data Sheet
Illuminator E & IE Brochure
Illuminator E & IE Catalog
[Request a quote]

Illuminator C-M

Single Phase 500VA to 2000VA (UL924: 90 minutes of battery time)
120V. input/output and 277V. input/output units

Illuminator CIII

Three Phase 4.8kVA to 50kVA (UL924: 90 minutes of battery time)
120/208Y or 277/480Y input/output

Illuminator CR/DR

Designed for outdoor applications
Series CR: 120 or 277VAC, Single Phase, 2W+G, 3 to 8kVA
Series DR: 120/208 or 277/480VAC, 3PH, 4W+G, 4 to 8kVA

[Back to Top]

2.- Staco Emergency Lighting Inverters - FirstLine 924 (8 to 30kW)

3-phase central inverters for emergency lighting applications (public buildings, theaters, schools, parking garages, housing complexes)
- on-line double conversion topology
- support incandescent, magnetic and electronic fluorescent ballasts, HID, HPS, MH
- 3-year on-site warranty, parts and labor, 1-year battery warranty, full replacement w/ 9 years prorated
UL924 compliant
meets NFPA101 Life Safety, and NEC codes
standard backup time of 90 minutes (VRLA batteries)
208 or 480 input and output

Staco Emergency Lighting Inverter: FirstLine924

Central System Advantages:

Single point of operation for simplified testing and record keeping
Simplified service and reduced cost of ownership
Common battery pack for easy maintenance

Lighting Types Supported:

Incandescent
Magnetic and electronic fluorescent ballasts
High power factor compact fluorescent
High Intensity Discharge (HID)
High Pressure Sodium (HPS)
Metal Halide (MH)

[Back to Top]

3.- Mitsubishi Emergency Lighting Uninterruptible Power Supplies - 2033C and 2033A series

Mitsubishi Uninterruptible Power Supplies: 2033C (10 to 20kVA)

high efficiency IGBT (converter/inverter), extended battery life
input power factor of 1.0
low input current harmonics: 4% THD (100% load), 7% THD (50% load)
UL924 approved
zero energy MBS
monitoring, management and shutdown software: optional DiamondLink software or NETCOM Web/SNMP adapter

Mitsubishi Uninterruptible Power Supplies: 2033A (30 to 75kVA)

high efficiency Intelligent Power Module transistors (converter/inverter)
extended battery life: step loads (0-100%) without the use of batteries
input power factor of 1.0
low input current harmonics: 3% THD (100% load),6% THD (50% load)
zero energy MBS
UL924 approved
operator-friendly control panel
monitoring, management and shutdown software with paging and e-mail capability: optional DiamondLink software or NETCOM Web/SNMP adapter

[Back to Top]

4.- Toshiba Emergency Lighting Uninterruptible Power Supplies - 25kVA and 50kVA

Toshiba Uninterruptible Power Supplies 4200FA Series 15 to 80kVA

Toshiba Emergengy Lighting UPS's: 4200FA XT series 25kVA and 50kVA

high efficiency IGBT (converter/inverter)
low input current harmonics/generator friendly
480 input, 480/277Y output
UL924 approved
internal maintenance bypass switch
3-year warranty
optional RemotEye Network Adapter (SNMP capability and unattended shutdown)

RemotEye II Web/SNMP adapter

provide an Ethernet connection for remote control and monitoring of UPS
orderly shutdown capability of servers
e-mail notification of UPS status and events to designated recipients

[Back to Top]

5.- Eaton Emergency Lighting Uninterruptible Power Supplies - 8kVA to 30kVA

Eaton Emergengy Lighting UPS's: UL924 PW9155 8 & 10kVA, UL924 PW9355 10 to 30kVA

true on line double conversion technology
8 & 10kVA, 1Ph. 277in/277out - 10/15/20/30kVA, 3PH. 208in/208out - 10/15/20/30kVA, 3PH. 480in-480/277out
UL924 approved
internal maintenance bypass switch
1-year UPS parts warranty, 2-year battery (parts) warranty
monitoring and power management over the internet
