Eaton Single-Phase Uninterruptible Power Supplies

Page Overview: Shortcut links

FERRUPS UPS's (500VA to 18kVA) Buy Now On Line (E-Store)
Eaton single-phase, on-line UPS's
- PW9130 (700VA to 3000VA) Buy Now On Line (E-Store)
- PW9155 (8 to 15kVA)
- PW9170+ (3 to 18kVA)
Battery replacement

1.- Single-Phase FERRUPS FE 60hz:

FERRUPS FE: 500VA to 18kVA Uninterruptible Power Supplies

Patented ferroresonant technology delivers "bulletproof" power protection,
Active Voltage Regulation converts power from almost any AC source into computer grade power
Eliminates harmful harmonic currents from entering a building wiring, where they can disrupt computer operations
Enhanced diagnostics initiates automatic startup and scheduled tests
Provides regulated output voltage without drawing power from batteries
Internal batteries for Ferrups units up to 7kVA
External batteries for all Ferrups units for extended run time
2-year limited warranty

FERRUPS FE 60hz Brochure

Buy Now! E-Store for Ferrups UPS's: 500VA to 3.1kVA

[Request a quote]

[Back to Top]

2.- Eaton/Powerware Uninterruptible Power Supplies: Single-Phase True On Line Double Conversion PW9130 - 700VA to 3kVA

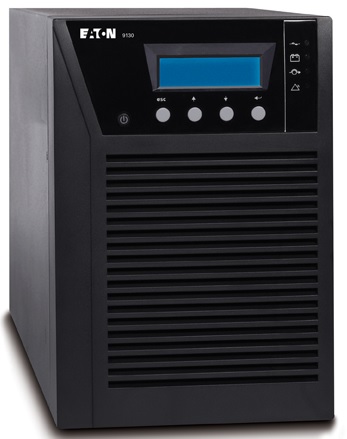

Eaton/Powerware 9130 Tower(700-3000VA)- Single Phase

true on-line double conversion for protection against all nine power problems
intuitive LCD screen
premium performance with a 0.9 power factor
95+ percent efficiency in high efficiency mode
hot-swappable batteries
extended run-time capability
- 2hrs+ w/ 4 EBM's for 1000VA, 1500VA and 3000VA units at full load (.7pf)
- 3hrs+ w/ 4 EBM's for 2000VA unit at full load (.7pf)
2-year limited warranty

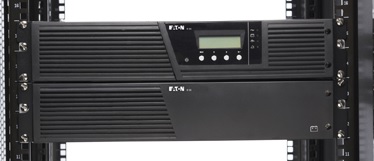

Eaton/Powerware 9130 Rackmount(700-3000VA)- Single Phase

2U rackmount units, 700VA, 1000VA, 1500VA, 2000VA, 2500VA, 3000VA
true on-line double conversion for protection against all nine power problems
intuitive LCD screen
premium performance with a 0.9 power factor
95+ percent efficiency in high efficiency mode
hot-swappable batteries
extended run-time capability (2U EBM's)
- 2hrs+ w/ 4 EBM's for 700VA, 1000VA, 1500VA, 200VA and 2500VA units at full load (.7pf)
- 100minutes w/ 4 EBM's for 3000VA unit at full load (.7pf)
2-year limited warranty

Part Number	Item Description	E-Store Price	Buy Now!	Front View
PW9130L700R-XL2U	Eaton PW9130 700RM (700VA/630watts) 120V., 5-15P, (6) 5-15R, 14 minutes battery time at .7pf, Rackmount, 2U, optional extended battery time, optional SNMP (click add to cart to select your options)	Free Shipping $727.00
PW9130L1000R-XL2U	Eaton PW9130 1000RM (1000VA/800watts) 120V., 5-15P, (6) 5-15R, 10 minutes battery time at .7pf, Rackmount, 2U, optional extended battery time, optional SNMP (click add to cart to select your options)	Free Shipping $925.00
PW9130L1500R-XL2U	Eaton PW9130 1500RM (1500VA/1350watts) 120V., 5-15P, (6) 5-15R, 7 minutes battery time at .7pf, Rackmount, 2U, optional extended battery time, optional SNMP (click add to cart to select your options)	Free Shipping $1,327.00
PW9130L2000R-XL2U	Eaton PW9130 2000RM (2000VA/1800watts) 120V., 5-20P, (6) 5-20R, (1) L5-20R, 9 minutes battery time at .7pf, Rackmount, 2U, optional extended battery time, optional SNMP (click add to cart to select your options)	Free Shipping $1,589.00
PW9130L2500R-XL2U	Eaton PW9130 2500RM (2500VA/2250watts) 120V., L5-30P, (6) 5-20R, (1) L5-30R, 7 minutes battery time at .7pf, Rackmount, 2U, optional extended battery time, optional SNMP (click add to cart to select your options)	Free Shipping $1,947.00
PW9130L3000R-XL2U	Eaton PW9130 3000RM (3000VA/2700watts) 120V., L5-30P, (6) 5-20R, (1) L5-30R, 5 minutes battery time at .7pf, Rackmount, 2U, optional extended battery time, optional SNMP (click add to cart to select your options)	Free Shipping $2,558.00
PW9130L700T	Eaton PW9130 700T (700VA/630watts) 120V., 5-15P, (6)5-15R, 8 minutes battery time at .7pf, Tower unit, optional SNMP (click add to cart to select your options)	Free Shipping $682.00
PW9130L1000T-XL	Eaton PW9130 1000T (1000VA/900watts) 120V., 5-15P, (6)5-15R, 10 minutes battery time at .7pf, Tower unit, optional extended battery time, optional SNMP (click add to cart to select your options)	Free Shipping $872.00
PW9130L1500T-XL	Eaton PW9130 1500T (1500VA/1350watts) 120V., 5-15P, (6)5-15R, 7 minutes battery time at .7pf, Tower unit, optional extended battery time, optional SNMP (click add to cart to select your options)	Free Shipping $1,202.00
PW9130L2000T-XL	Eaton PW9130 2000T (2000VA/1800watts) 120V., 5-20P, (1) L5-20, (4) 5-20R, 15 minutes battery time at .7pf, Tower unit, optional extended battery time, optional SNMP (click add to cart to select your options)	Free Shipping $1,548.00
PW9130L3000T-XL	Eaton PW9130 3000T (3000VA/2700watts) 120V., L5-30P, (4) 5-20R, (1) L5-30R, 9 minutes battery time at .7pf, Tower unit, optional extended battery time, optional SNMP (click add to cart to select your options)	Free Shipping $2,381.00
Network-MS Web/SNMP Card	Eaton Web/SNMP Card Communications Card for PW9130 UPS units, direct control and monitoring of UPS in SNMP-based networks	Free Shipping $275.00

[Back to Top]

3.- Eaton/Powerware Uninterruptible Power Supplies: Single-Phase True On Line Double Conversion PW9155 - 8 to 15kVA

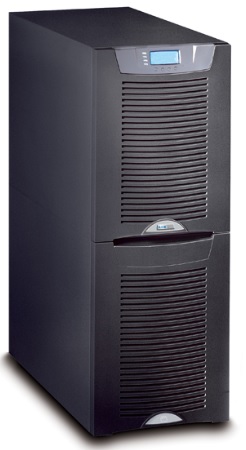

Eaton/Powerware 9155 (8-15kVA) - Single Phase

true double-conversion online topology provides the highest protection level against power problems
provides more real wattage in less space with a .9 power factor
high efficiency of 90 percent reduces utility costs, and produces cooler operating conditions
supports Powerware Hot Sync paralleling of multiple modules for redundancy or extra capacity
low input current distortion (<5% THD), excellent compatibility with generators
2 or 3-high configuration for extended battery time (internal batteries), additional battery cabinets available
2-year limited warranty

[Back to Top]

4.- Eaton/Powerware Uninterruptible Power Supplies: Single-Phase True On Line Double Conversion PW9170+ - 3 to 18kVA

Eaton Uninterruptible Power Supplies: PW9170

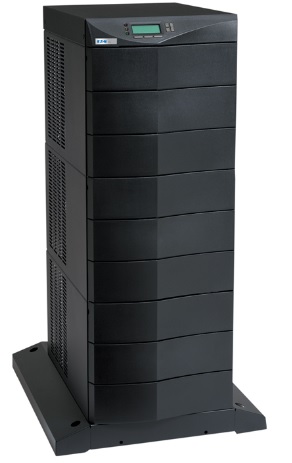

Eaton/Powerware 9170+ (3-18kVA) - Single Phase

The Eaton/Powerware 9170+ uninterruptible power system, with its scalable, modular and redundant design, offers the highest level of reliability and lowest cost of ownership of any UPS in the 3-18 kVA range. Available in three-, six-, nine-, and twelve-slot configurations, the Powerware 9170+ is ideal for server farms, networks, telecommunications, Internet service providers and other mission-critical applications.

true double-conversion online topology provides the highest protection level against power problems
Offers N+X redundancy for both power and logic modules and battery modules, eliminating any system level single-point-of-failure
Easily scalable to adapt to changing IT environments by simply adding power and/or battery modules
Hot-swappable batteries, power modules and charger modules simplify service
low input current distortion (<5% THD), excellent compatibility with generators
Extended Battery Modules (EBMs) extend runtime capability
2-year limited warranty
